Wall mount enclosures:
A wide range of wall mount racks are designed for the installation of both equipment and cabling. Avanix wall mount racks are available in 10” and 19”, depth from 280mm, 450mm, 550mm to 600mm to meet the various applications in the industries of data, security, etc.
There are single section wall mount enclosures and double section wall racks, shipped in assembled packing or flat packing.

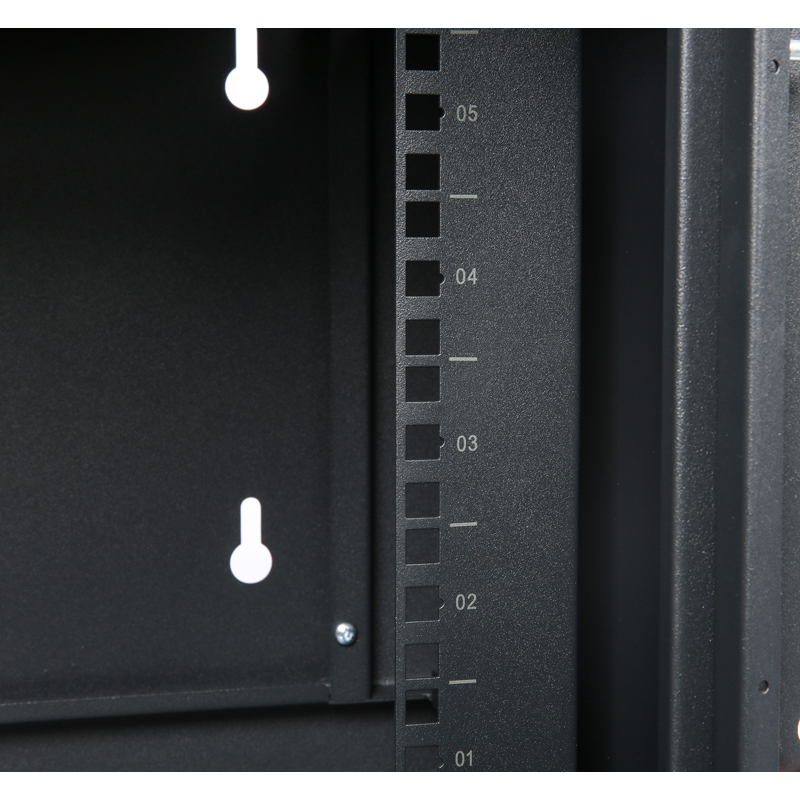

10”SOHO wall mount enclosure
Features of 10 inch SOHO wall mount enclosure:
• Material: high quality SPCC cold rolled steel
• Surface finishing: degreasing, pickling, phosphoric, powder coated
• All the 10” installation wall mount enclosures shipped in assembled packing.
• Lockable toughened glass door with metal door border.
• Cable entries available on top cover.
• Static loading capacity: 20kgs
• Color: Black Ral9005, Gray Ral7035,
• IP20
Ordering Model:
Model No | Capacity/U | Width/mm | Depth/mm |
SOH080 | 4U | 370 | 140 |
SOH081 | 6U | 370 | 140 |
SOH082 | 9U | 370 | 140 |
SOH083 | 12U | 370 | 140 |
SOH084 | 4U | 370 | 280 |
SOH085 | 6U | 370 | 280 |
SOH086 | 9U | 370 | 280 |
SOH087 | 12U | 370 | 280 |
SOHO91 | 6U | 370 | 300 |
SOHO92 | 9U | 370 | 300 |
SOHO93 | 12U | 370 | 300 |
SOHO94 | 15U | 370 | 300 |
