A2 Network Cabinet


Floor standing cabinet

19” network server cabinets are ranged from 15U to 47U with both 600mm and 800mm width available, widely used in data, security, telecommunications and audio visual industries.

Stable structure, quick assembly, flat packing, different doors, various options on accessories are making our 19” floor standing cabinets becoming popular in the market.

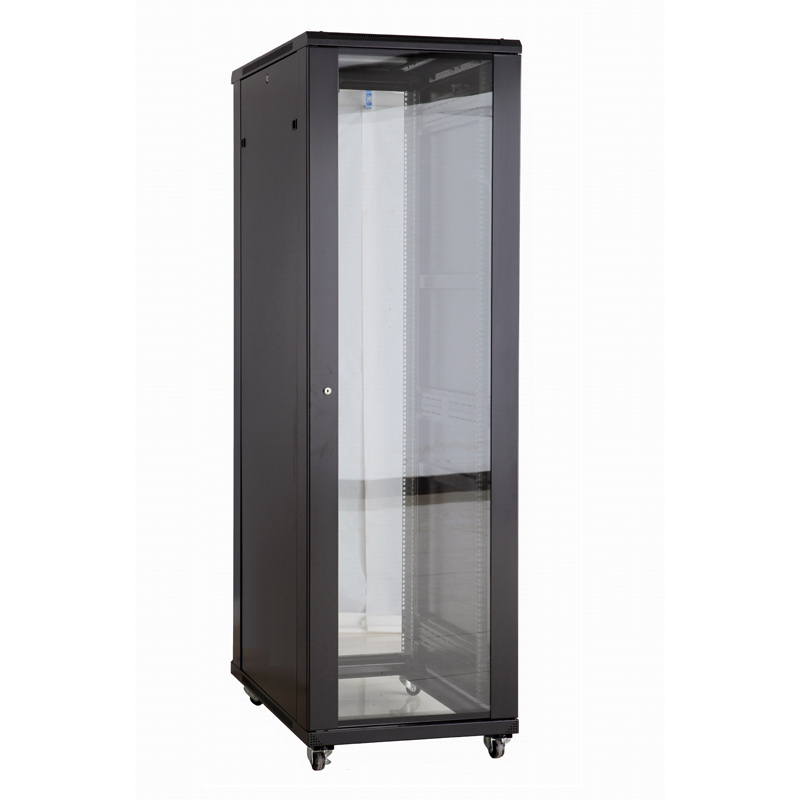

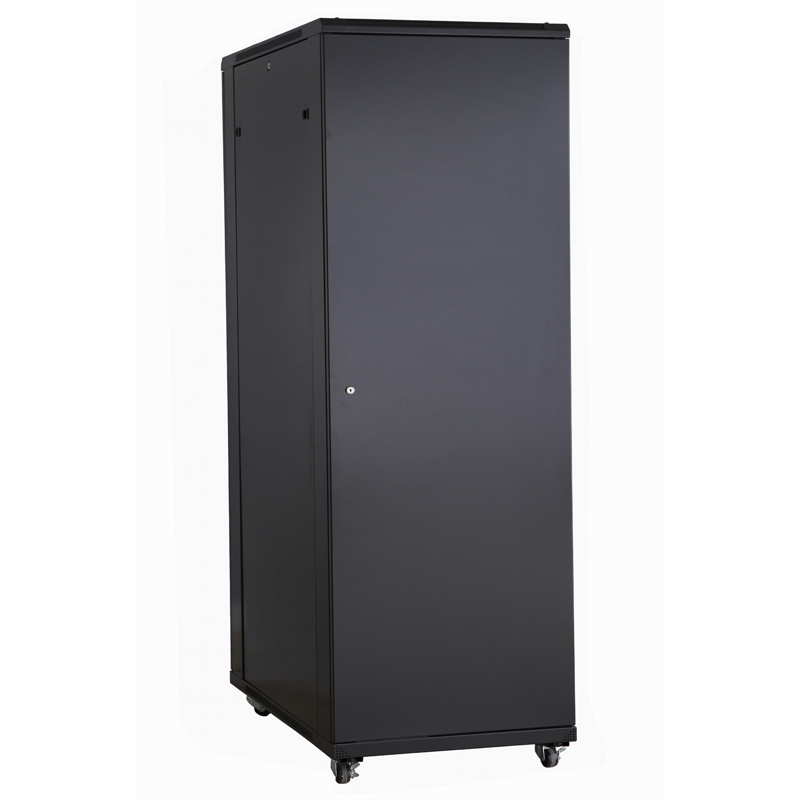

A2 network cabinet

Features of A2 network cabinet:

• Material: high quality SPCC cold rolled steel

• Surface finishing: degreasing, pickling, phosphoric, powder coated

• 19” mounting rails are marked with U height position.

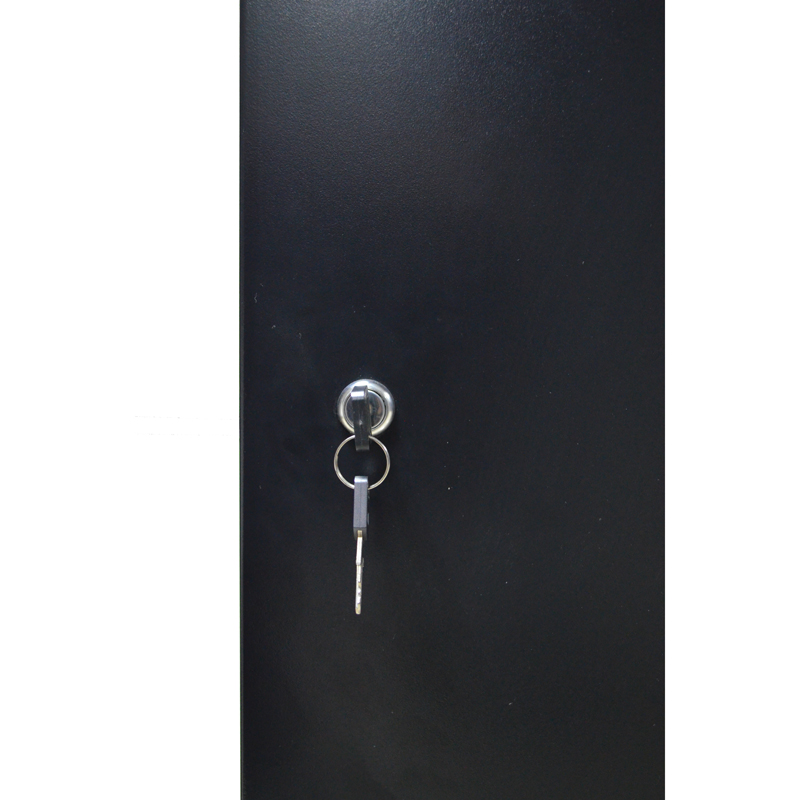

• Quick release side panels are removable, side locks are optional for security.

• A full range of accessories are available to complete cable or equipment installation from cable managements, shelves, plinth kits to cooling systems as well as PDU (power distribution unit.)

• Cabinets supplied in flat packing to save the shipping volume and warehouse space.

• Static loading capacity: 800kgs

• Color: Black Ral9005, Gray Ral7035,

• IP20

• Width: 600mm, 800mm

• Depth: 600mm, 800mm, 900mm, 1000mm

• Cabinet capacity is from 15U to 47U.

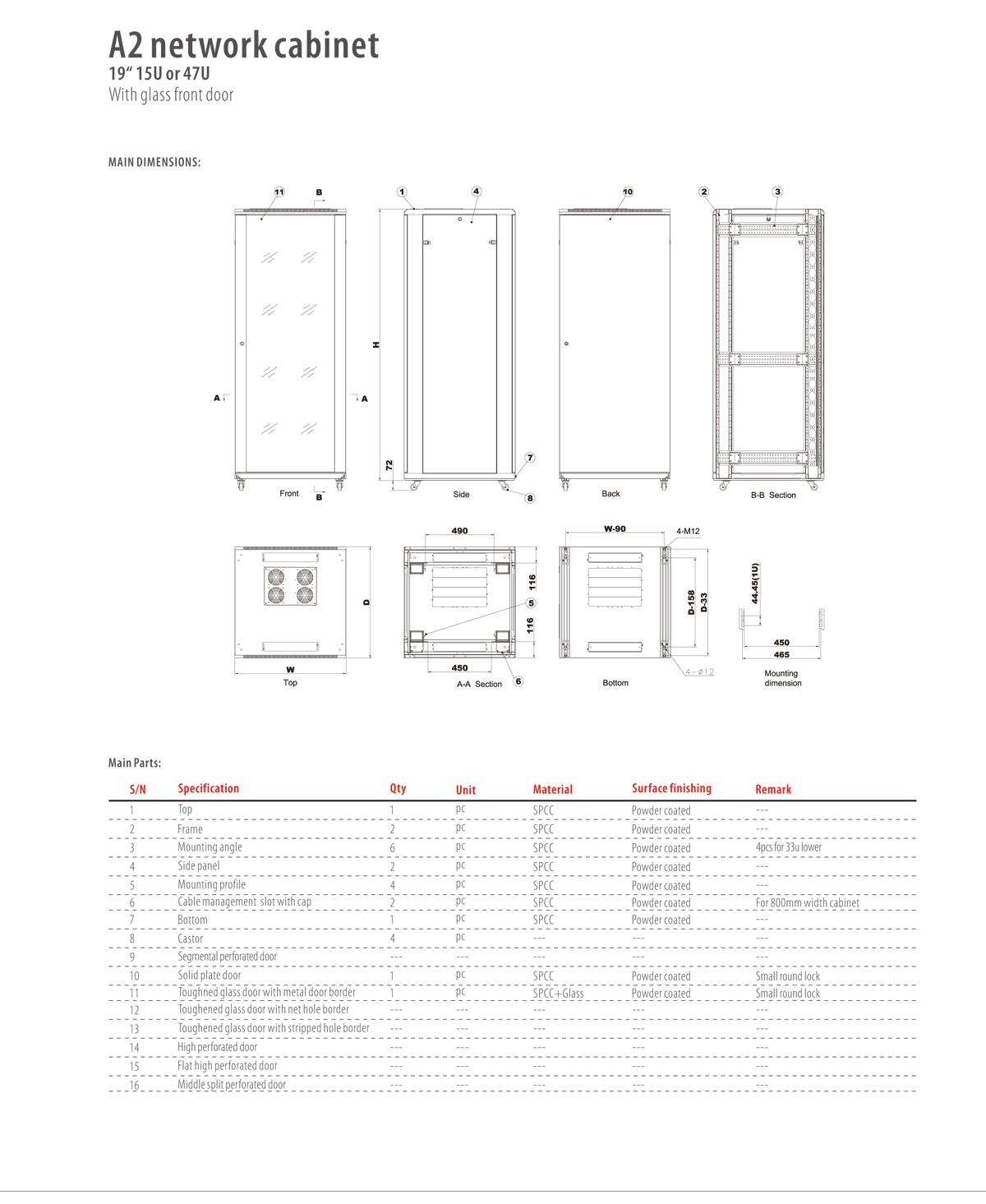

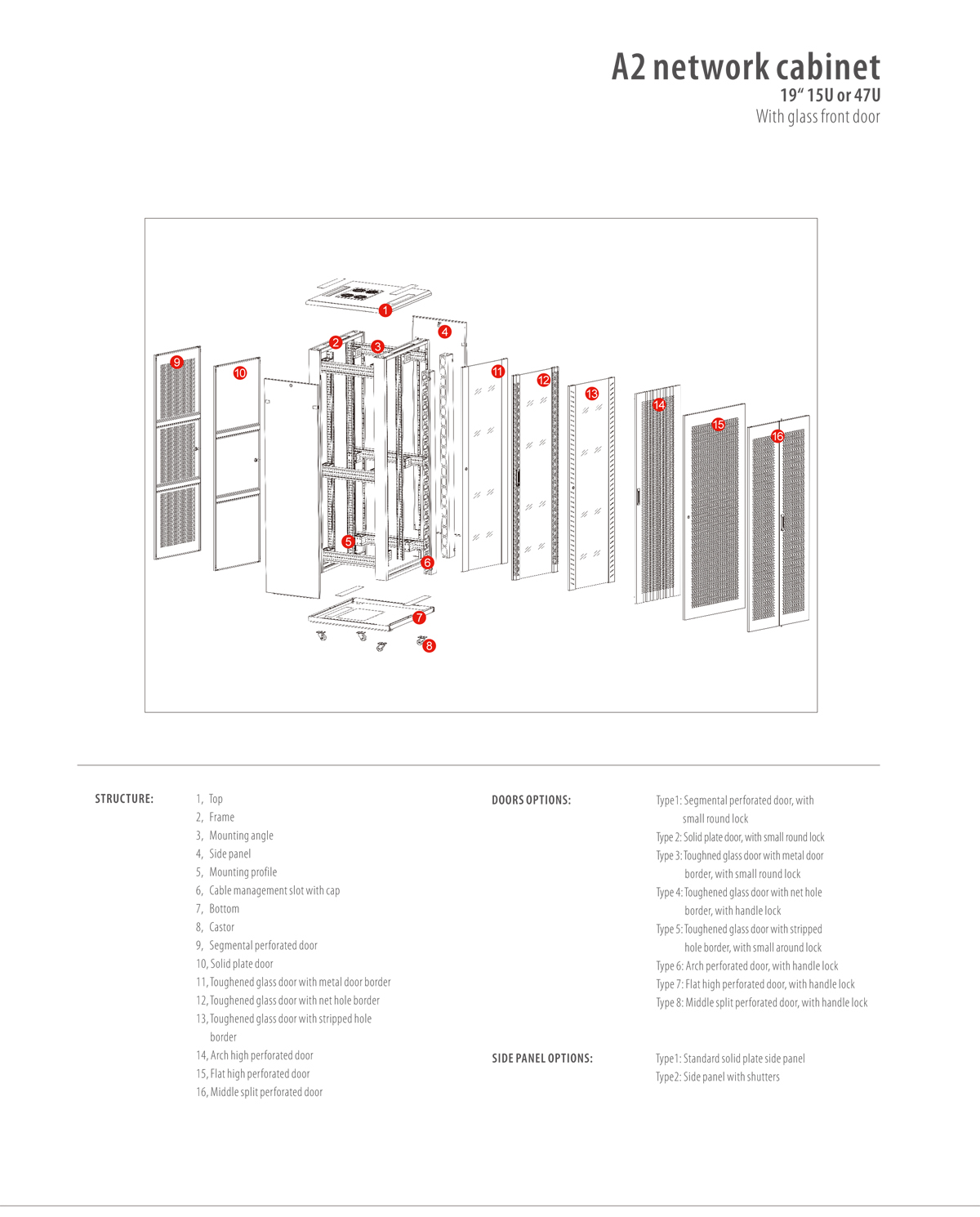

A2 network cabinet-1A2 network cabinet-2A2 network cabinet-3A2 network cabinet-4
