AKW Double Section Wall Mount Rack


Wall mount enclosures:

A wide range of wall mount racks are designed for the installation of both equipment and cabling.  Avanix wall mount racks are available in 10” and 19”,  depth from 280mm, 450mm, 550mm to 600mm to meet the various applications in the industries of data, security, etc.

There are single section wall mount enclosures and double section wall racks, shipped in assembled packing or flat packing.

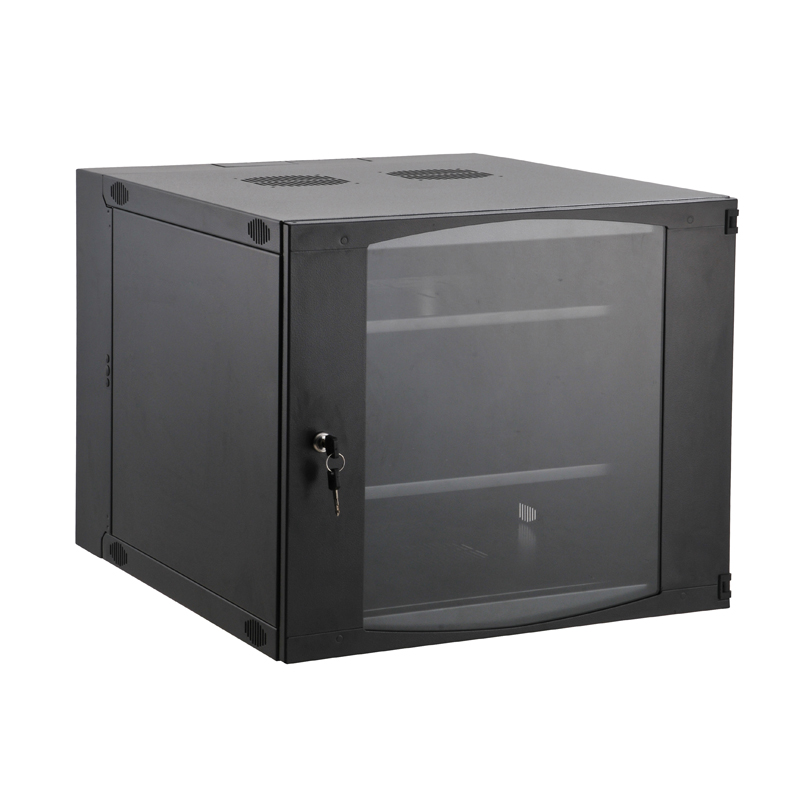

AKW double section wall mount rack

Features of AKW double section wall mount rack:

• Material: high quality SPCC cold rolled steel

• Surface finishing: degreasing, pickling, phosphoric, powder coated

• 19” installation, bolted frame and reliable structure, shipped in flat packing.

• 16pcs of screws are needed to assemble the whole enclosure. Enclosures could be built up easily and quickly by one worker.

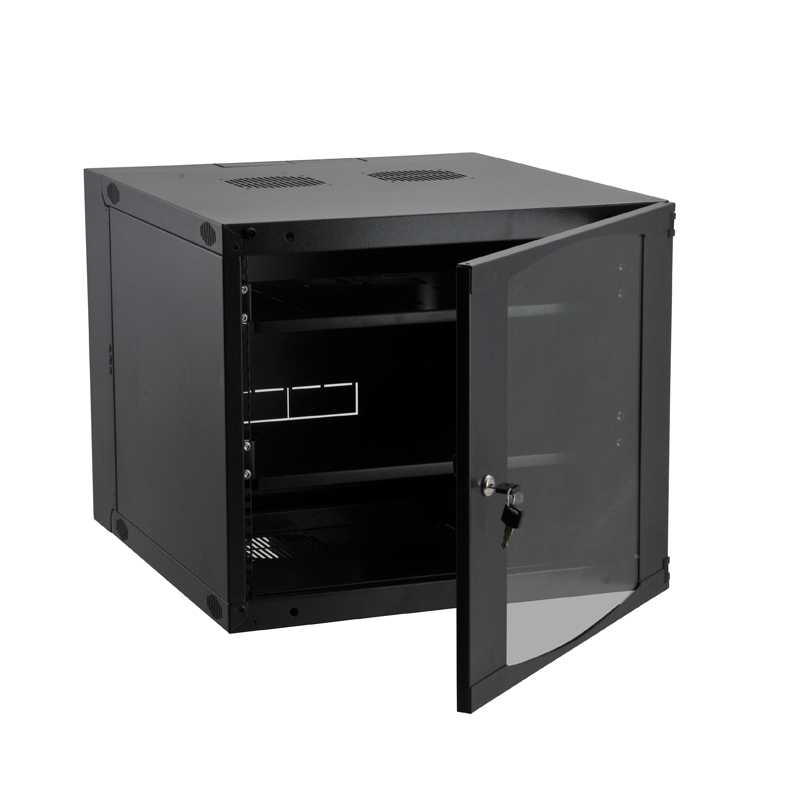

• Front door is with corrective pin to avoid door dropping. Opening direction of front door can be changed easily.

• Opening direction of enclosure body can be changed quickly.

• Side panels are locked safely from inside without lock or key.

• A full range of accessories are available to complete cable or equipment installation from cable managements, shelves, cooling systems to PDU (power distribution unit.)

• Cable entries available on top cover and back.

• Static loading capacity: 30kgs

• Color: Black Ral9005, Gray Ral7035,

• IP20

• Width: 540mm

• Depth: 450mm and 600mm (swing part depth is 80mm)

• Enclosure capacity: 6U, 9U, 12U, 15U

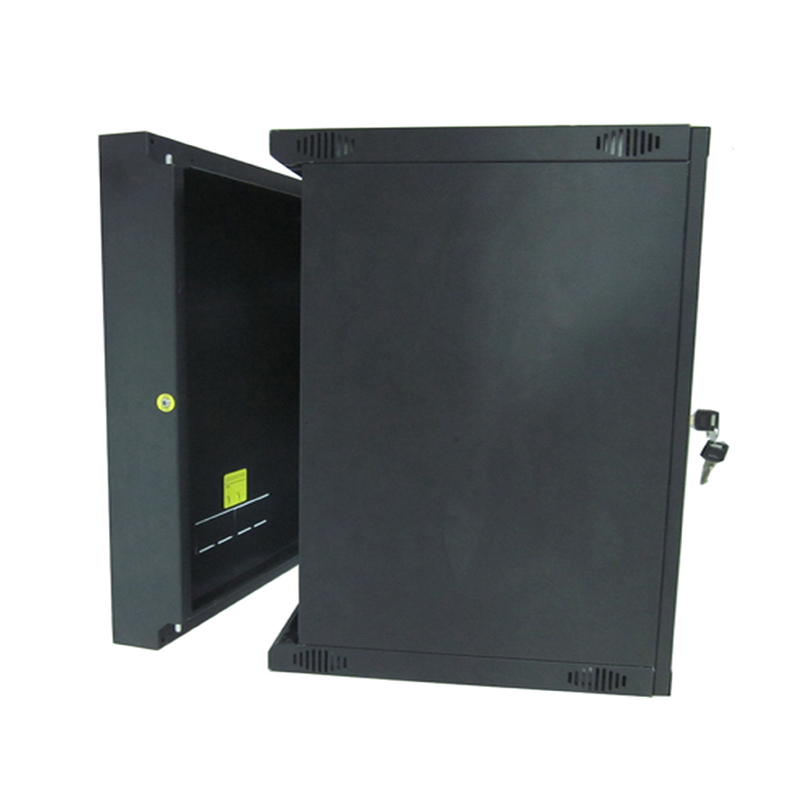

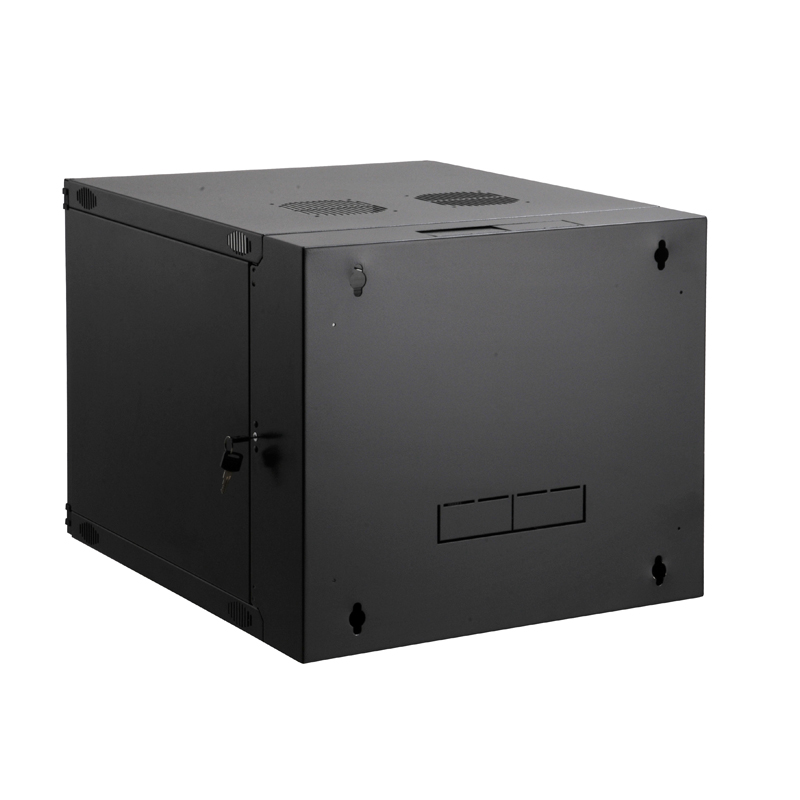

AKW swing wall mount enclosure-1AKW swing wall mount enclosure-2
