AS Network Server Rack


Floor standing cabinet

19” network server cabinets are ranged from 15U to 47U with both 600mm and 800mm width available, widely used in data, security, telecommunications and audio visual industries.

Stable structure, quick assembly, flat packing, different doors, various options on accessories are making our 19” floor standing cabinets becoming popular in the market.

AS network server rack

Features of AS network server rack:

• 19” free standing cabinets are designed for installation of both cabling and networking equipment.

• Material: high quality SPCC cold rolled steel

•  Surface finishing: degreasing, pickling, phosphoric, powder coated

• Horizontally adjustable U marked front and rear mounting profiles.

• Easy access to equipment is also assured due to quick released side panels, side locks are optional for security.

• A full range of accessories are available to complete cable or equipment installation from cable managements, shelves, plinth kits to cooling systems as well as PDU (power distribution unit.)

•  Cable access is available on top and bottom with adjustable dimensions (Cable entries with brushes are optional.)

•  Cabinets are supplied in flat packing to save the shipping volume and warehouse space.

• Static loading capacity: 800kgs

• Color: Black Ral9005, Gray Ral7035,

• IP20

• Width: 600mm, 800mm

•  Depth: 600mm, 800mm, 900mm, 1000mm

•  Cabinet capacity is from 15U to 47U.

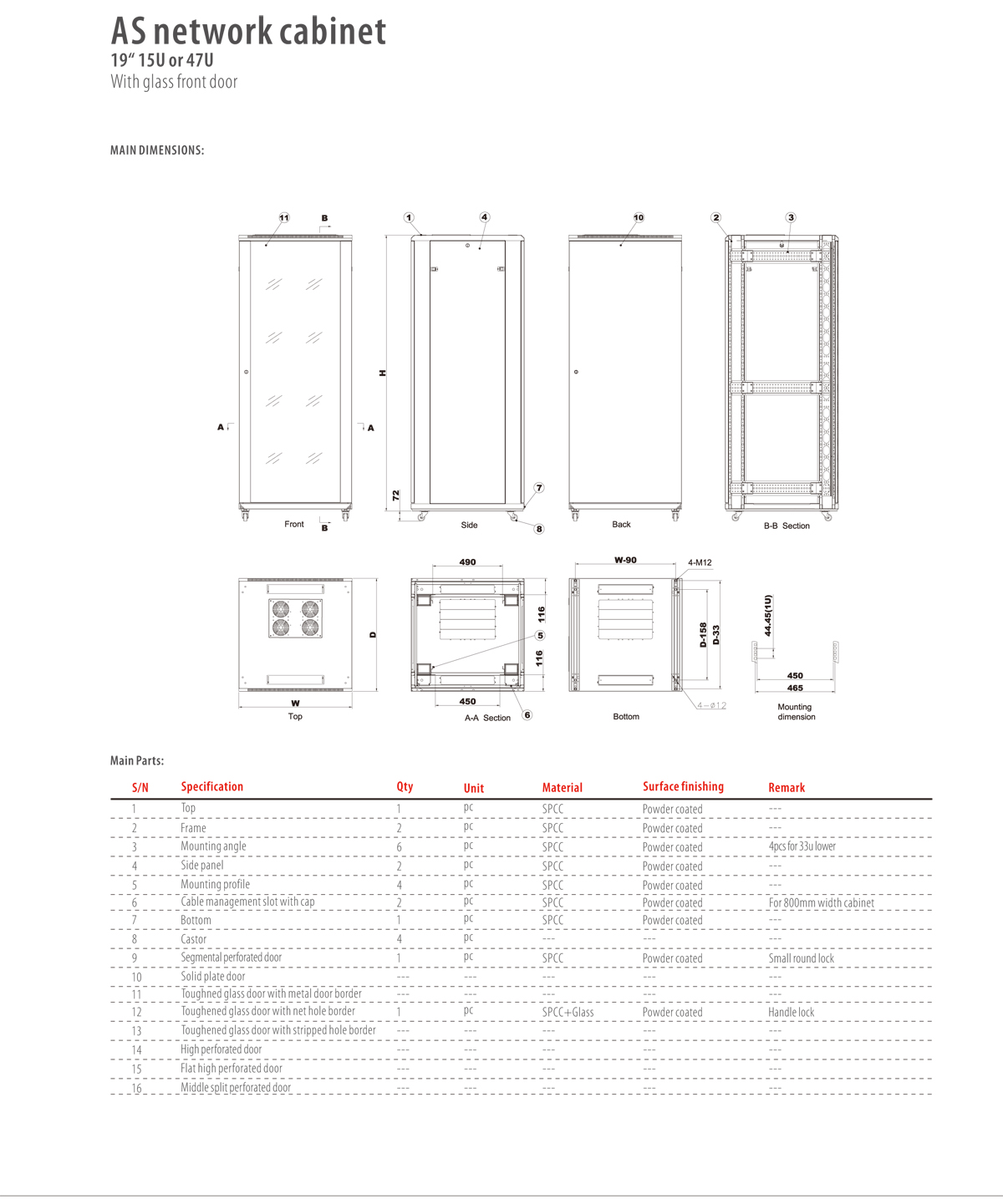

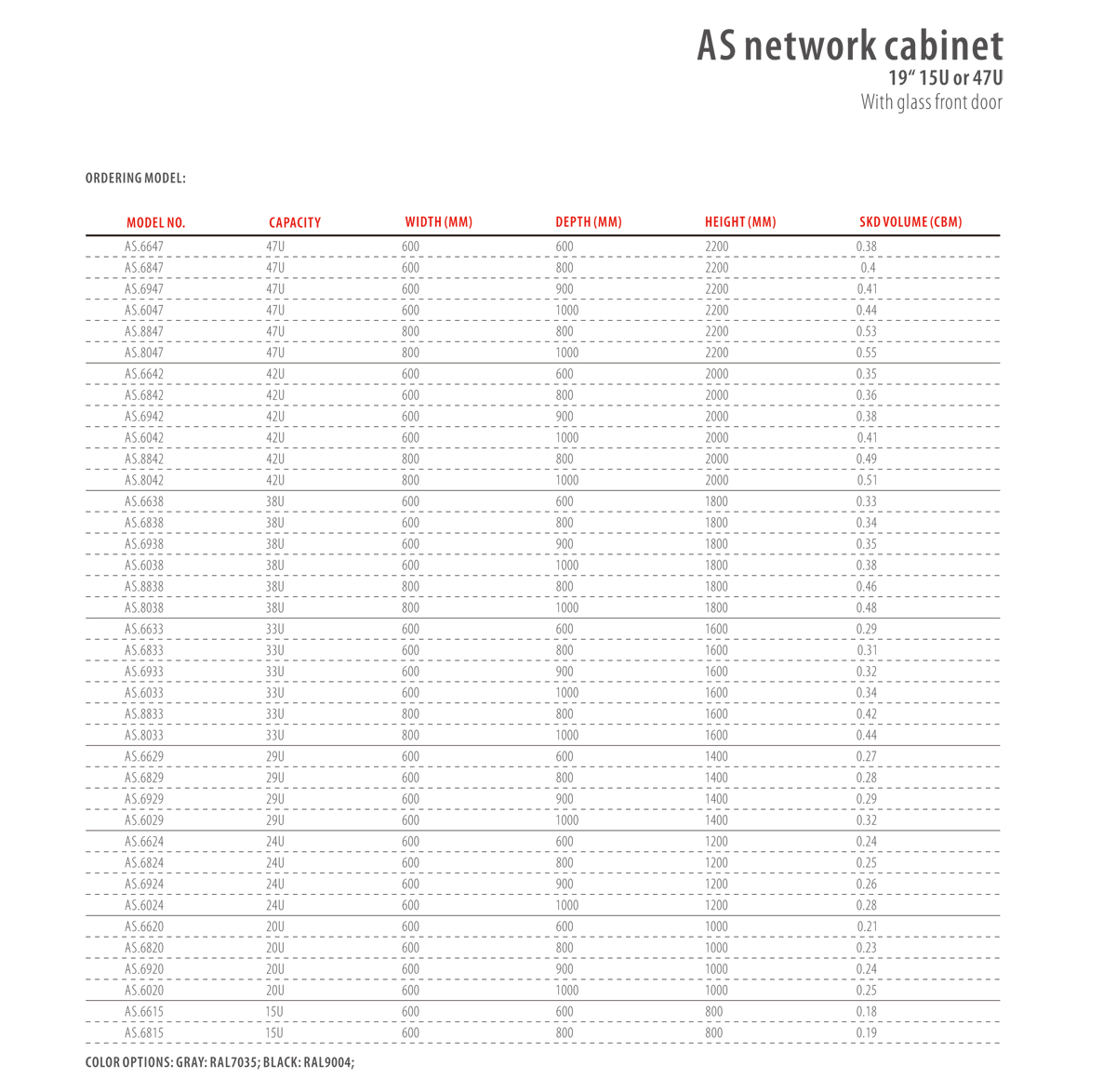

AS network cabinet-1AS network cabinet-2AS network cabinet-3AS network cabinet-4
