ASW Single Section Wall Mount Enclosure


Wall mount enclosures:

A wide range of wall mount racks are designed for the installation of both equipment and cabling.  Avanix wall mount racks are available in 10” and 19”, depth from 280mm, 450mm, 550mm to 600mm to meet the various applications in the industries of data, security, etc.

There are single section wall mount enclosures and double section wall racks, shipped in assembled packing or flat packing.

ASW single section wall mount enclosure

Features of ASW single section wall mount enclosure:

• Material: high quality SPCC cold rolled steel

• Surface finishing: degreasing, pickling, phosphoric, powder coated

• 19” installation, welded frame and reliable structure, shipped in assembled packing

• Removable side panels with side pins included, side locks are optional.

• Wall mount template included to ensure quick and easy installation to wall.

• A full range of accessories are available to complete cable or equipment installation from cable managements, shelves, cooling systems to PDU (power distribution unit.)

• Cable entries available on top cover and bottom panel.

• Static loading capacity: 60kgs

• Color: Black Ral9005, Gray Ral7035,

• IP20

• Width: 600mm

• Depth: 450mm and 600mm

• Enclosure capacity: 4U, 6U, 9U, 12U, 15U, 18U, 22U, 27U

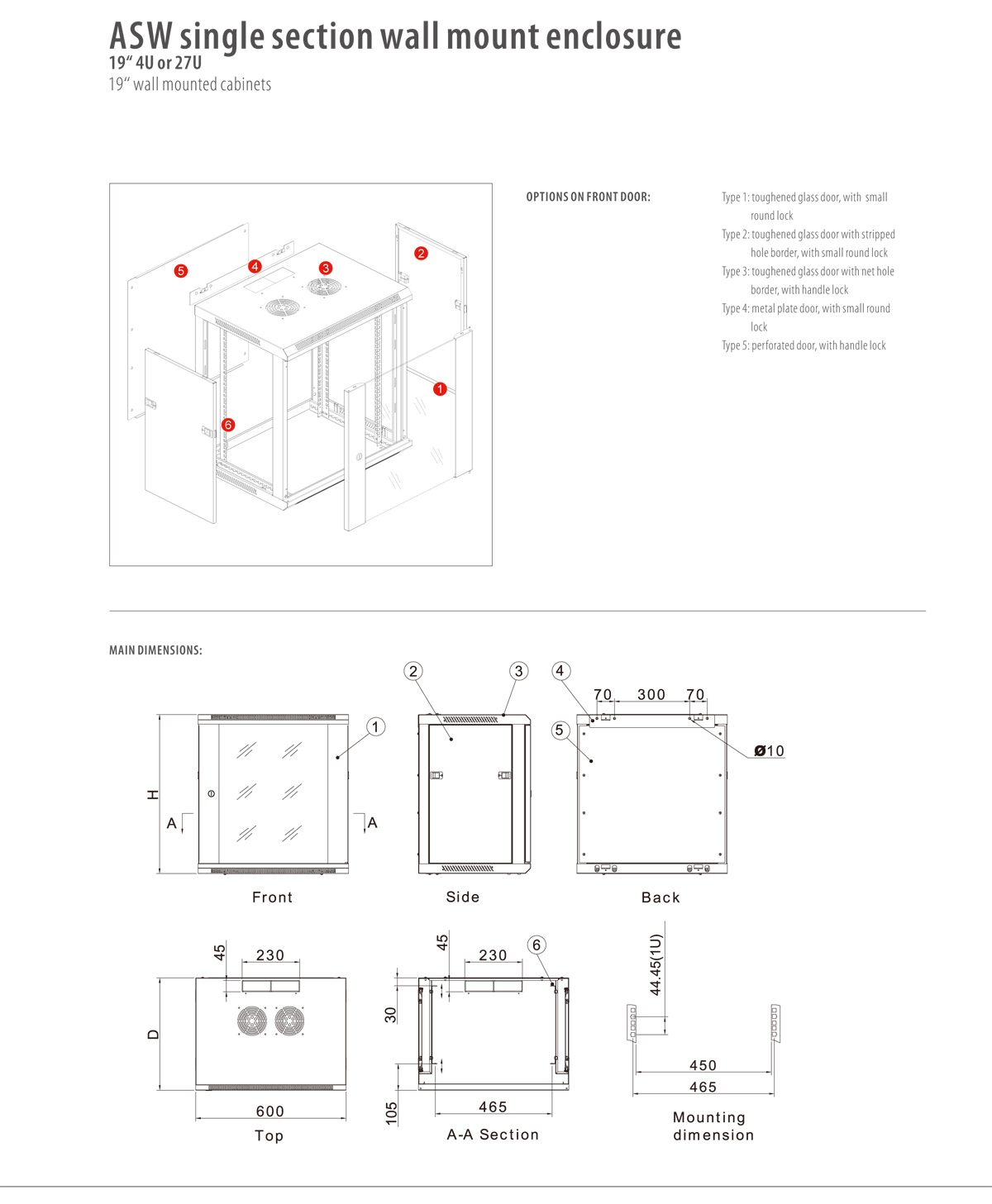

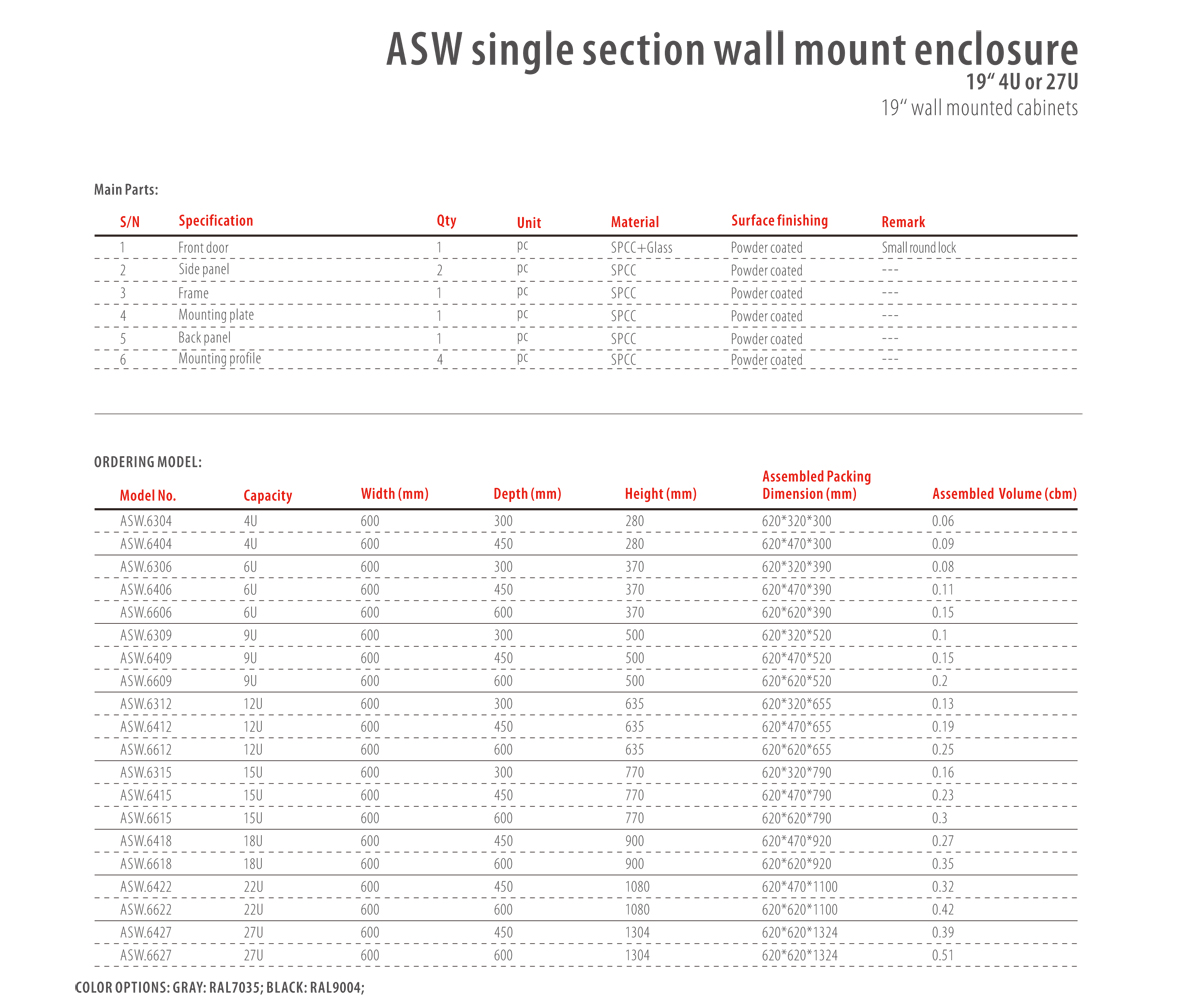

ASW single section wall mount enclosure-1ASW single section wall mount enclosure-2ASW single section wall mount enclosure-3
