Wall mount enclosures:
A wide range of wall mount racks are designed for the installation of both equipment and cabling. Avanix wall mount racks are available in 10” and 19”, depth from 280mm, 450mm, 550mm to 600mm to meet the various applications in the industries of data, security, etc.
There are single section wall mount enclosures and double section wall racks, shipped in assembled packing or flat packing.

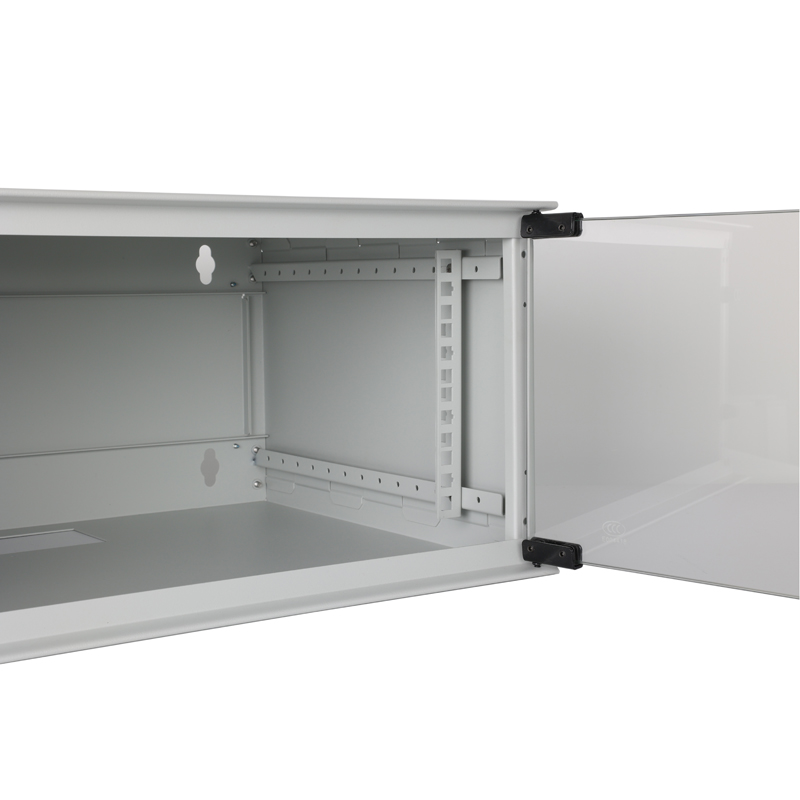

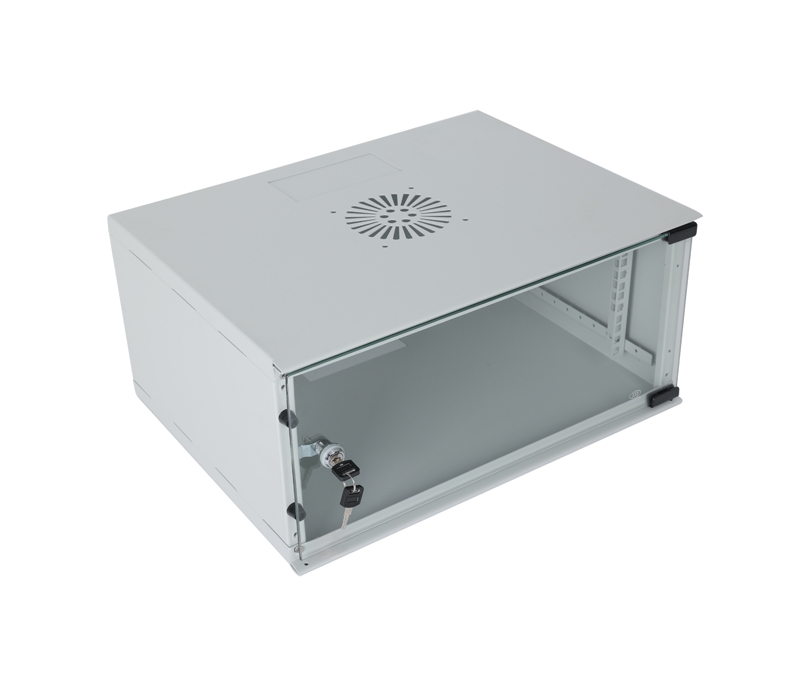

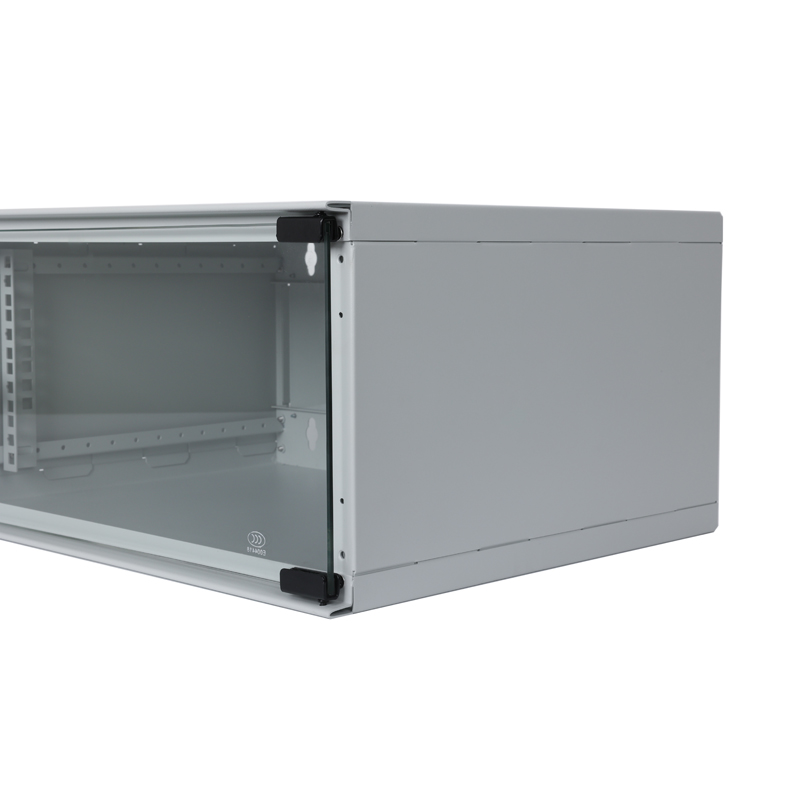

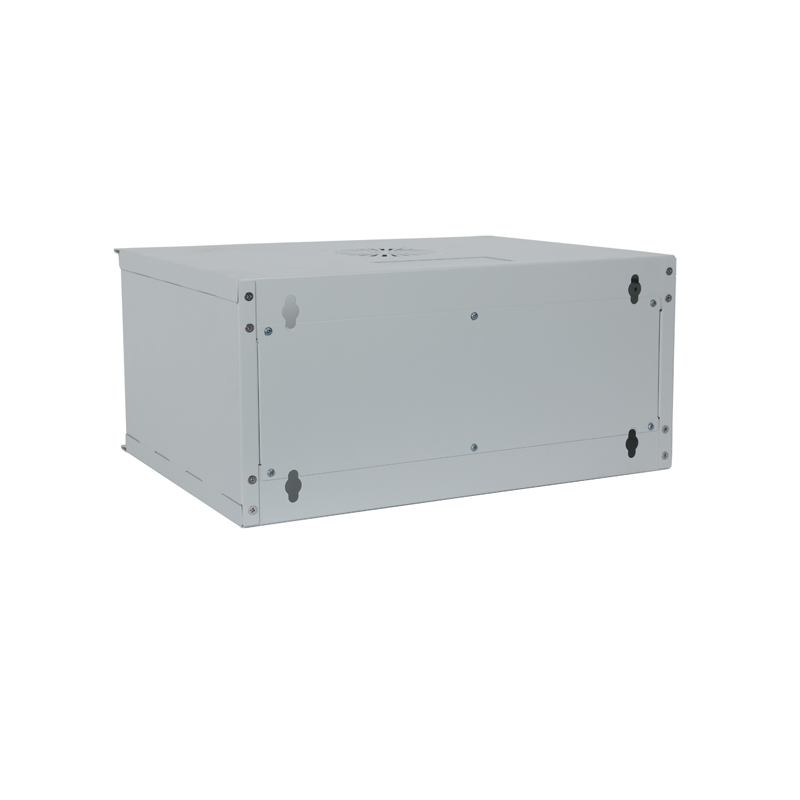

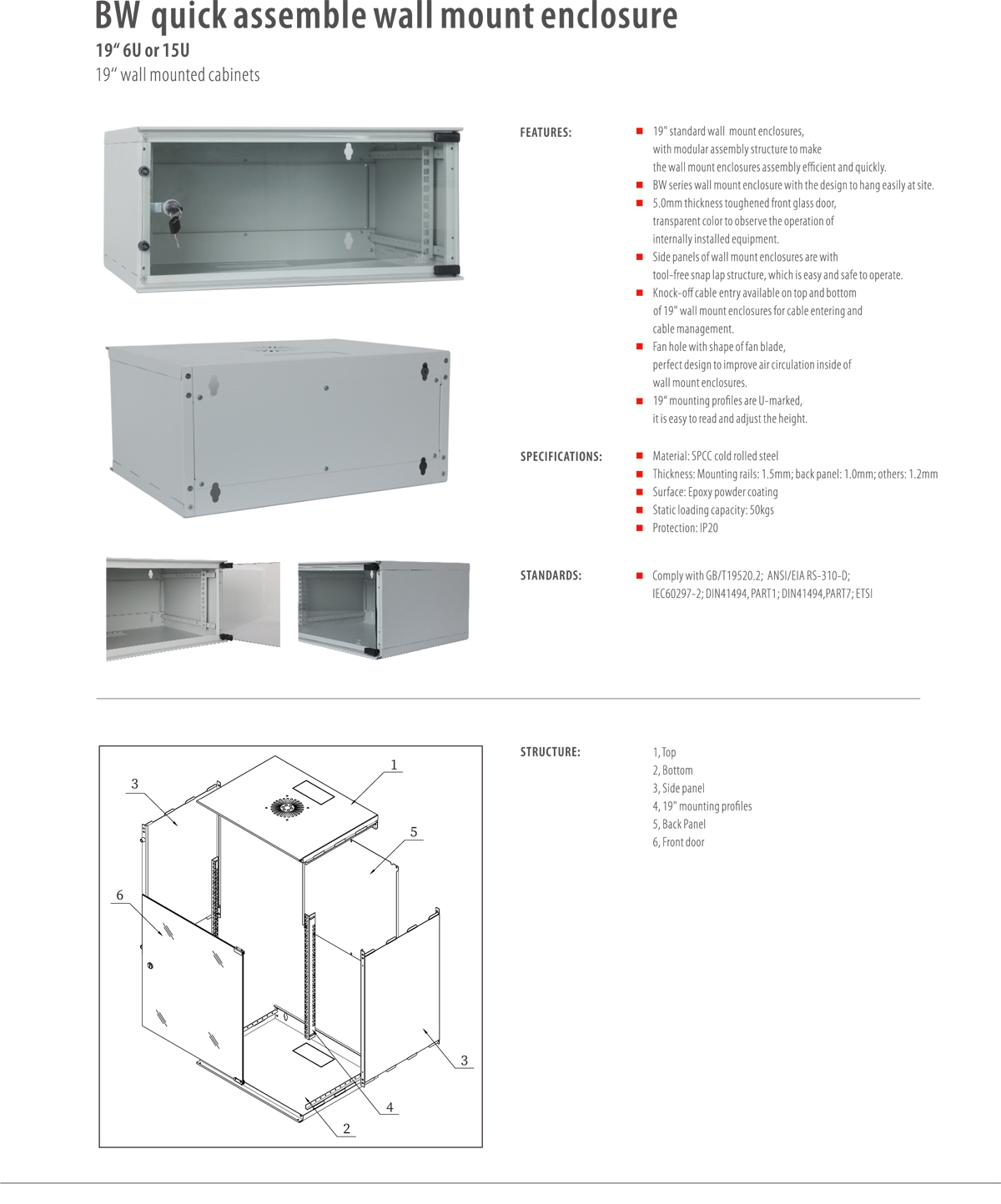

BW single section wall mount enclosure
Features of BW single section wall mount enclosure:
• Material: high quality SPCC cold rolled steel
• Surface finishing: degreasing, pickling, phosphoric, powder coated
•19” standard wall mount enclosures, with modular assembly structure to make the wall mount enclosures assembly efficient and quickly.
• Knock-off cable entry available on top and bottom of 19” wall mount enclosures for cable entering and cable management.
• A full range of accessories are available to complete cable or equipment installation from cable managements, shelves, cooling systems to PDU (power distribution unit.)
• Static loading capacity: 50kgs
• Color: Black Ral9005, Gray Ral7035,
• IP20
• Width: 520mm
• Depth: 400mm, 450mm and 600mm
• Enclosure capacity: 4U, 6U, 9U, 12U, 15U
Wall mount enclosures:
A wide range of wall mount racks are designed for the installation of both equipment and cabling. Avanix wall mount racks are available in 10” and 19”, depth from 280mm, 450mm, 550mm to 600mm to meet the various applications in the industries of data, security, etc.
There are single section wall mount enclosures and double section wall racks, shipped in assembled packing or flat packing.
BW single section wall mount enclosure
Features of BW single section wall mount enclosure:
• Material: high quality SPCC cold rolled steel
• Surface finishing: degreasing, pickling, phosphoric, powder coated
•19” standard wall mount enclosures, with modular assembly structure to make the wall mount enclosures assembly efficient and quickly.
• Knock-off cable entry available on top and bottom of 19” wall mount enclosures for cable entering and cable management.
• A full range of accessories are available to complete cable or equipment installation from cable managements, shelves, cooling systems to PDU (power distribution unit.)
• Static loading capacity: 50kgs
• Color: Black Ral9005, Gray Ral7035,
• IP20
• Width: 520mm
• Depth: 400mm, 450mm and 600mm
• Enclosure capacity: 4U, 6U, 9U, 12U, 15U
