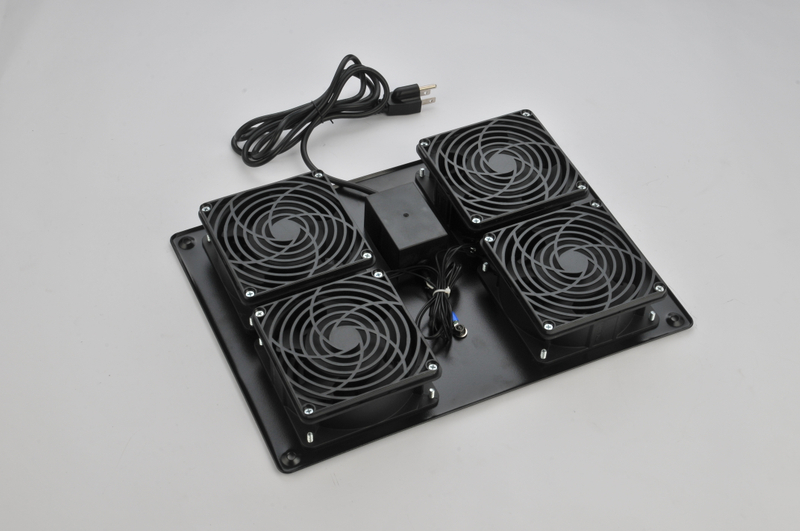

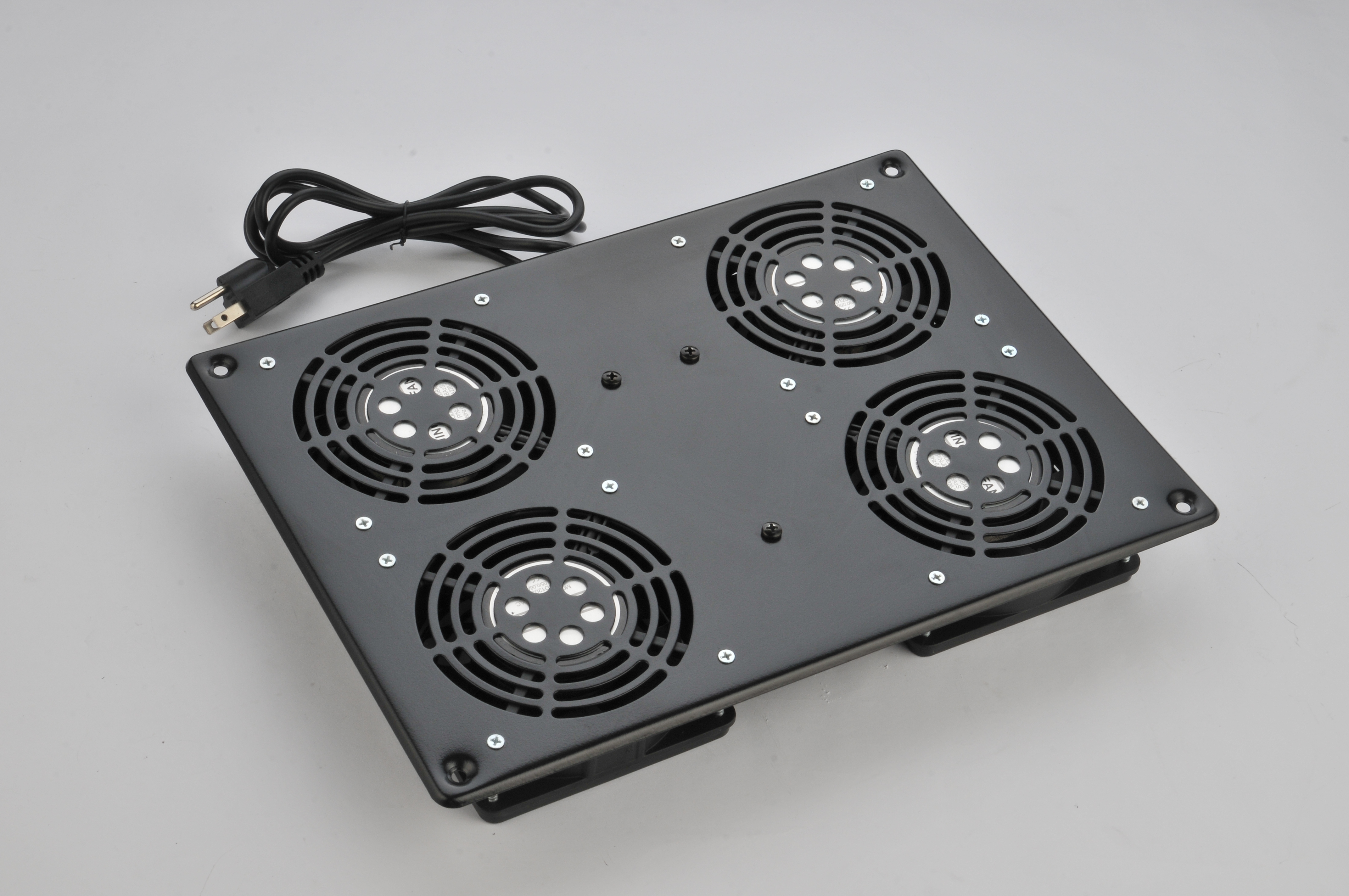

Fan unit installed on top of 19” racks and cabinets:
Features:
Cooling system used in any 19” data network cabinets and enclosures, installed on top of cabinets
2 way fan tray, 4 way fan tray could be used in any depth of Avanix 19” standard floor standing cabinets. 6 way fan tray and 8 way fan tray are optional to meet the special requirements.
Dimension of cooling fan: 120mm*120mm*38mm
Power cord length: 1.8m
Input frequency: 100-231V/50HZ
Period: -10-+50 degrees
Material: SPCC cold rolled sheet

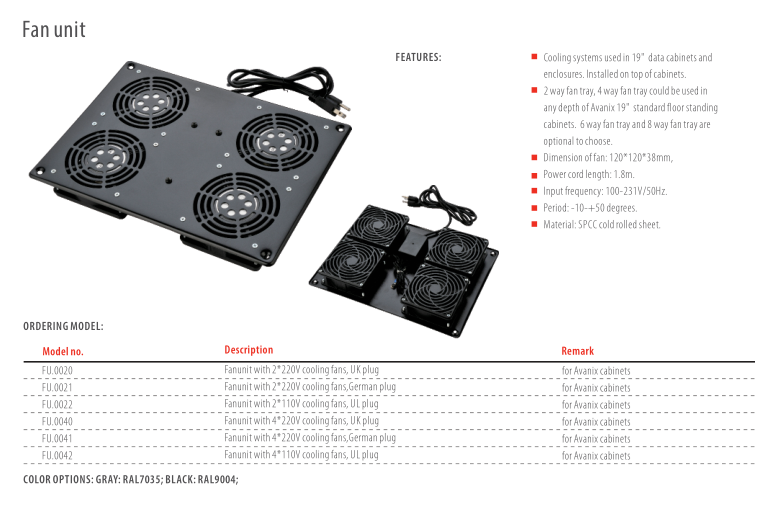

Ordering Model:
Model | Description | Remark |
FU.0020 | Fan unit with 2*220V fans, UK plug | Installed on top of Avanix cabinets |
FU.0021 | Fan unit with 2*220V fans, GE plug | Installed on top of Avanix cabinets |
FU.0022 | Fan unit with 2*110V fans, UL plug | Installed on top of Avanix cabinets |
FU.0040 | Fan unit with 4*220V fans, UK plug | Installed on top of Avanix cabinets |
FU.0041 | Fan unit with 4*220V fans, GE plug | Installed on top of Avanix cabinets |
FU.0042 | installed on top of Avanix cabinets | Installed on top of Avanix cabinets |
