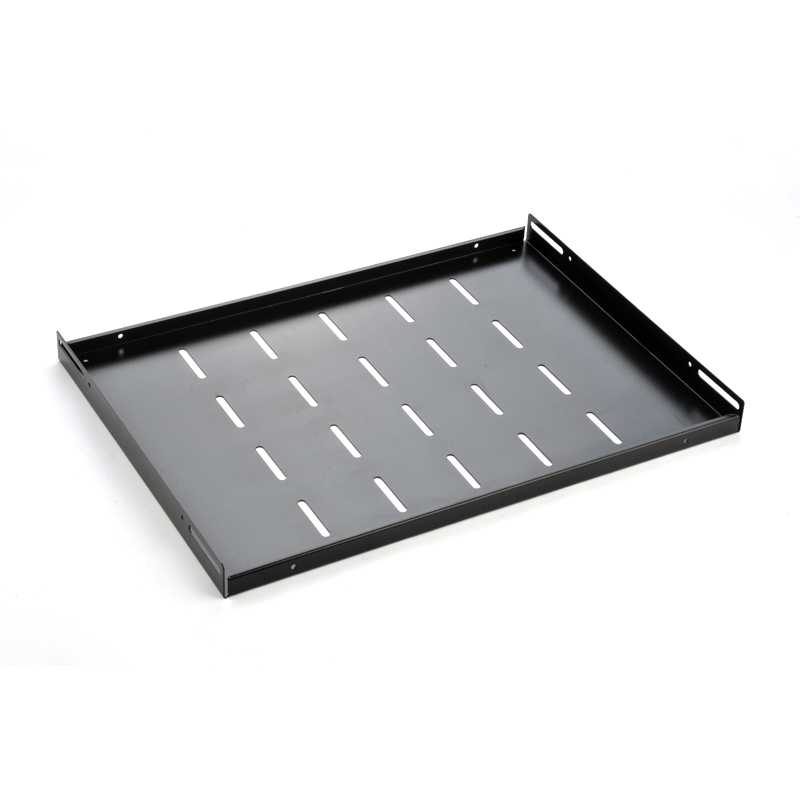

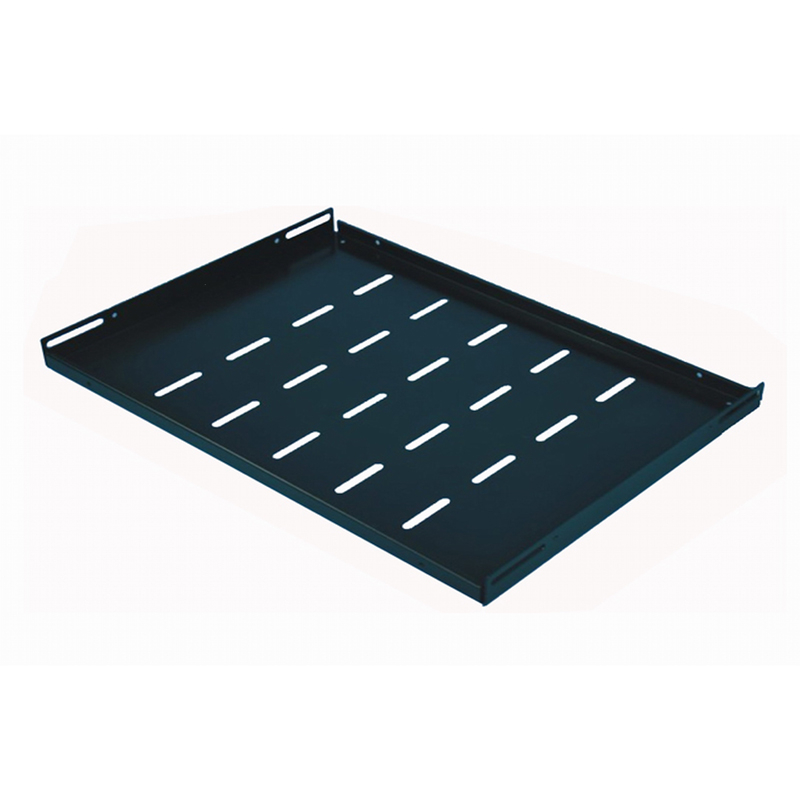

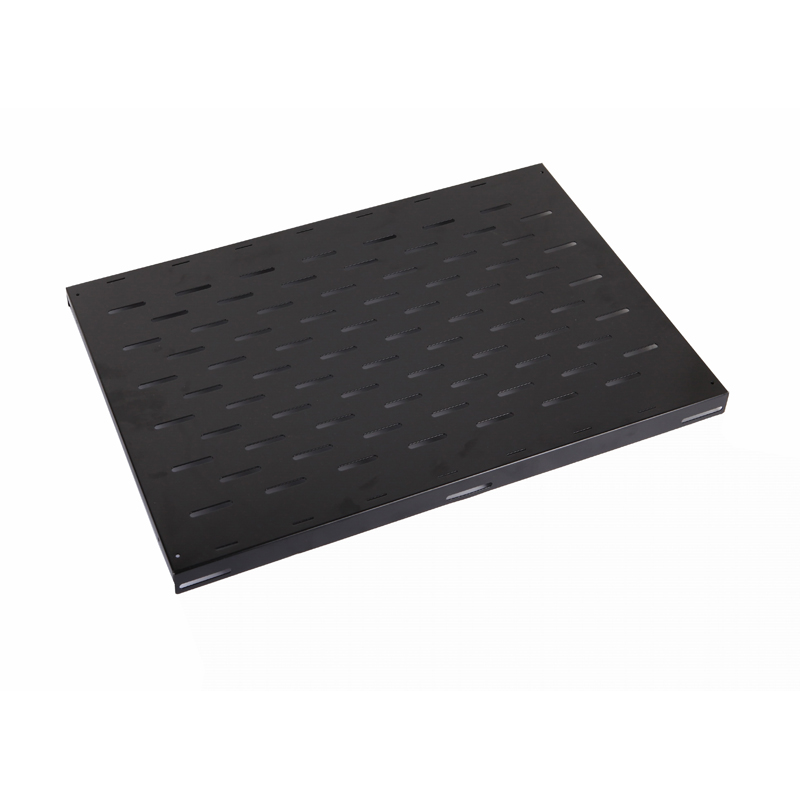

Features:
• Used for Avanix cabinets only, side installation (no 19” installation)
• Material: SPCC cold rolled sheet
• Width of shelf: 485mm
• Thickness: 1.2mm
• Static loading capacity: 100kgs
• Color options: Gray Ral7035; Black Ral9004

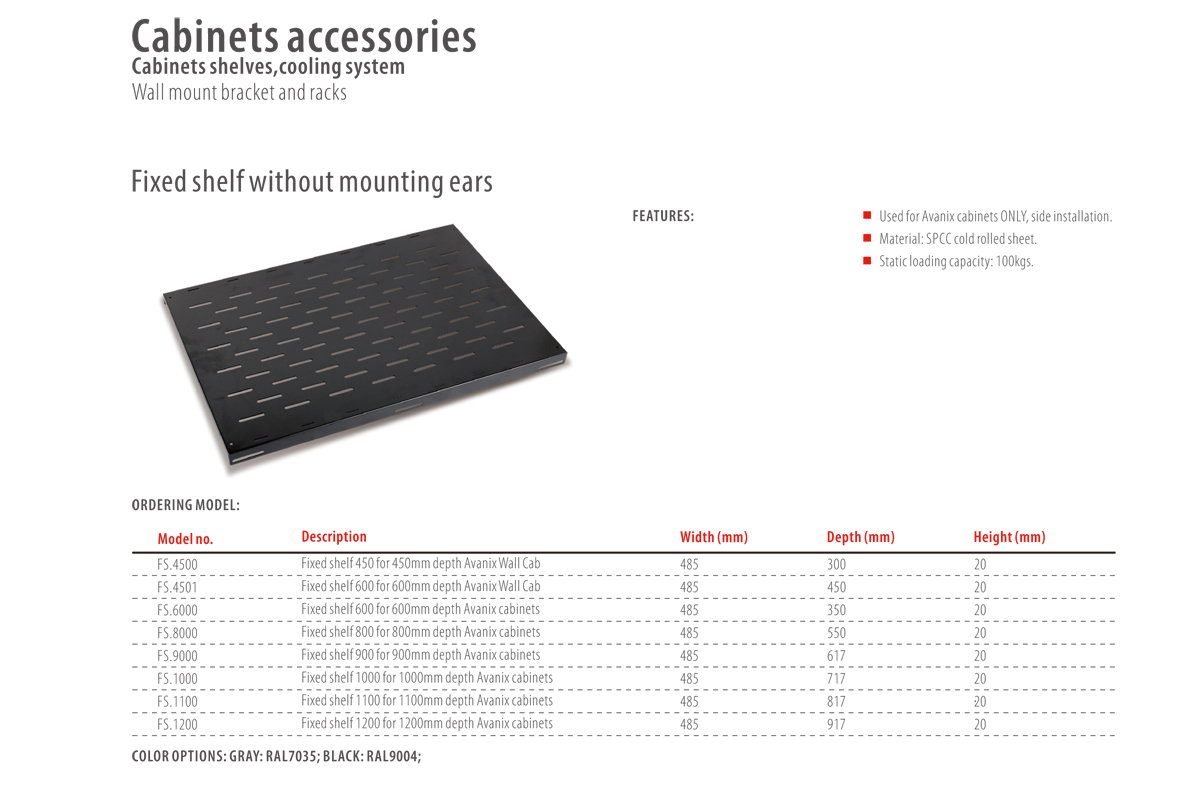

Ordering Model:
Model No. | Description | Width/mm | Depth/mm | Height/mm |
FS.4500 | Fixed shelf 450 for 450mm depth Avanix wall rack | 485 | 300 | 20 |
FS.4501 | Fixed shelf 600 for 600mm depth Avanix wall rack | 485 | 450 | 20 |
FS.6000 | Fixed shelf 600 for 600mm depth Avanix cabinets | 485 | 350 | 20 |
FS.8000 | Fixed shelf 800 for 800mm depth Avanix cabinets | 485 | 550 | 20 |
FS.9000 | Fixed shelf 900 for 900mm depth Avanix cabinets | 485 | 617 | 20 |
FS.1000 | Fixed shelf 1000 for 1000mm depth Avanix cabinets | 485 | 717 | 20 |
FS.1100 | Fixed shelf 1100 for 1100mm depth Avanix cabinets | 485 | 817 | 20 |
FS.1200 | Fixed shelf 1200 for 1200mm depth Avanix cabinets | 485 | 917 | 20 |
