Quick Assemble AVW Single Section Wall Mount Enclosure

Availability:
Quantity:

Wall mount enclosures:

A wide range of wall mount racks are designed for the installation of both equipment and cabling.  Avanix wall mount racks are available in 10” and 19”, depth from 280mm, 450mm, 550mm to 600mm to meet the various applications in the industries of data, security, etc.

There are single section wall mount enclosures and double section wall racks, shipped in assembled packing or flat packing.


Quick assemble AVW single section wall mount enclosure

Features of AVW single section wall mount enclosure:

• Material: high quality SPCC cold rolled steel

• Surface finishing: degreasing, pickling, phosphoric, powder coated

• 19” installation, bolted and stable structure, cabinets could be assembled in less than 5 minutes.

• Removable side panels with side pins included, side locks are optional.

• Wall mounted panel locked from inside with screw, avoid to be stolen or dropped off.

• A full range of accessories are available to complete cable or equipment installation from cable managements, shelves, cooling systems to PDU (power distribution unit.)

• Cable entries available on top cover and bottom panel.

• Static loading capacity: 60kgs

• Color: Black Ral9005, Gray Ral7035,

• IP20

• Width: 570mm

• Depth: 450mm and 600mm

• Enclosure capacity: 4U, 6U, 9U, 12U, 15U, 18U, 22U, 27U

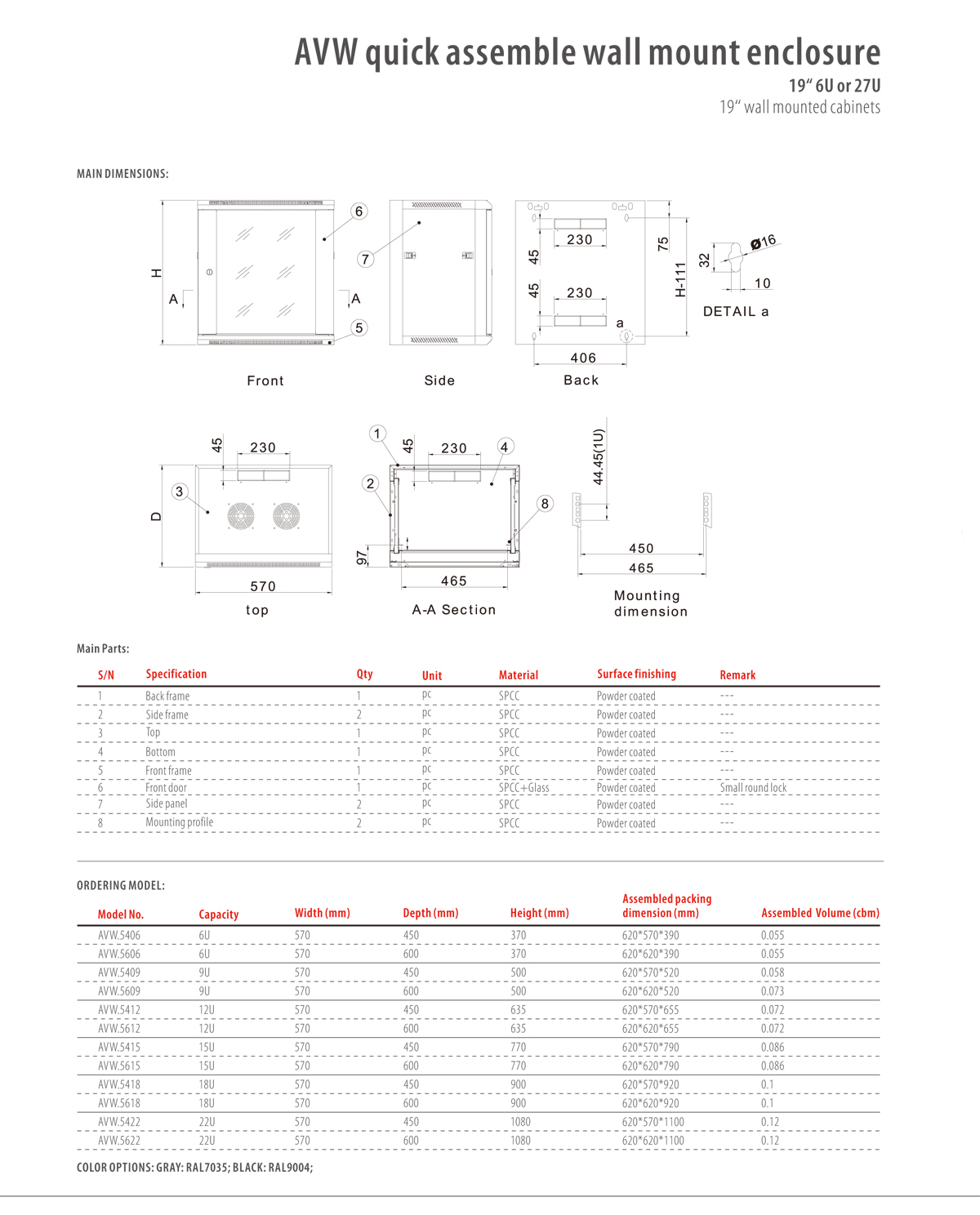

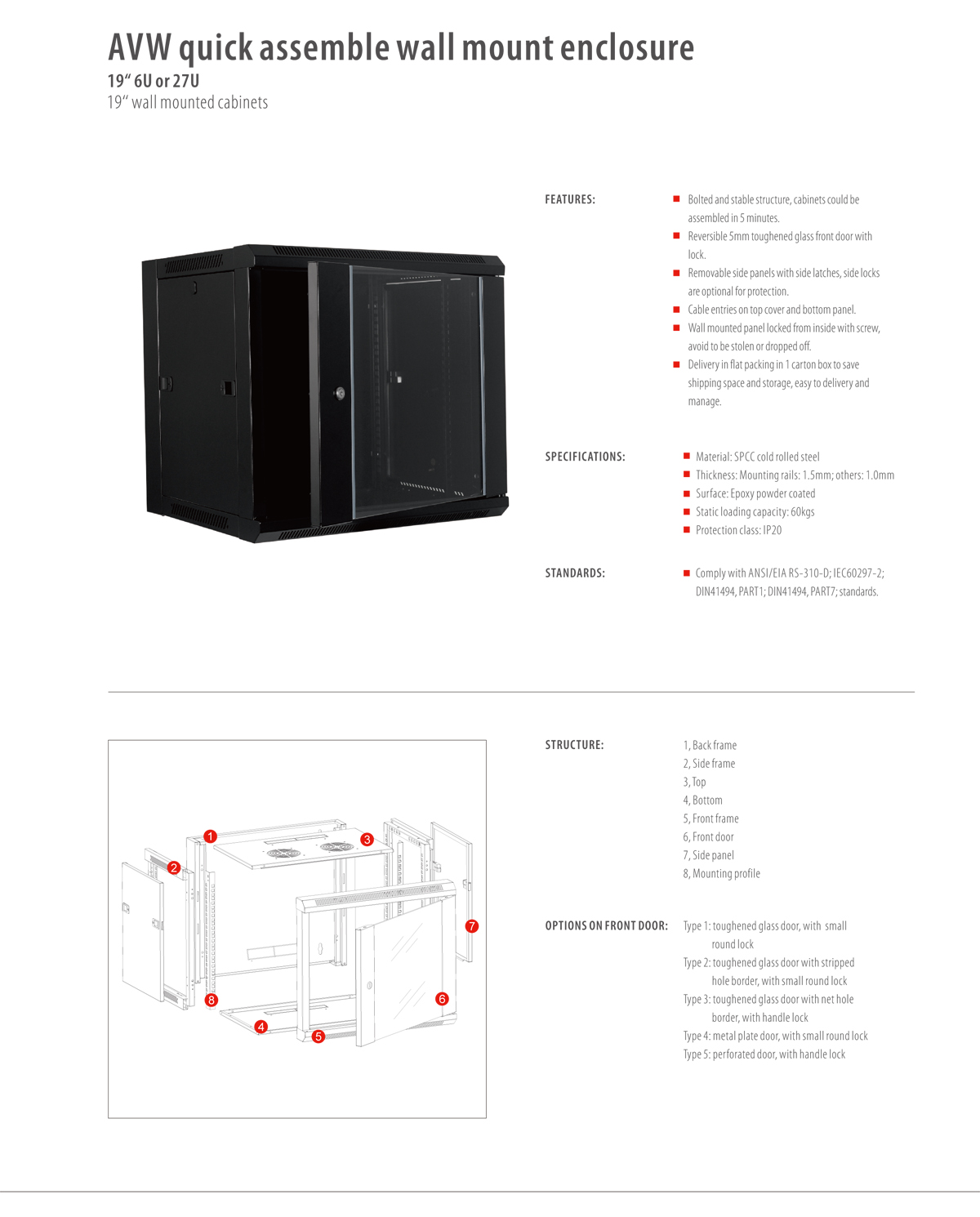

AVW quick assemble wall mount enclosure-1AVW quick assemble wall mount enclosure-2
