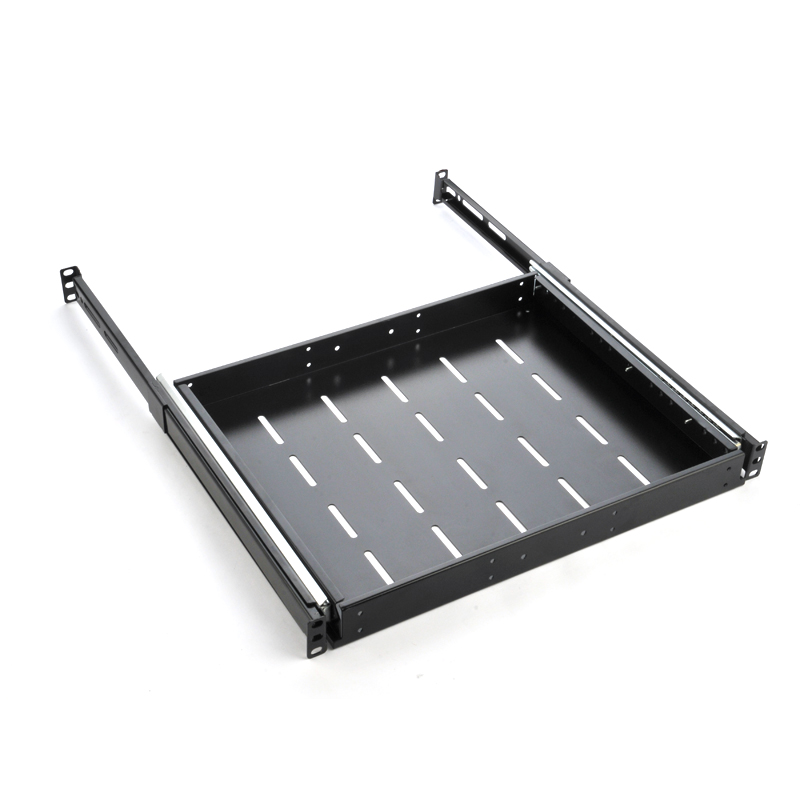

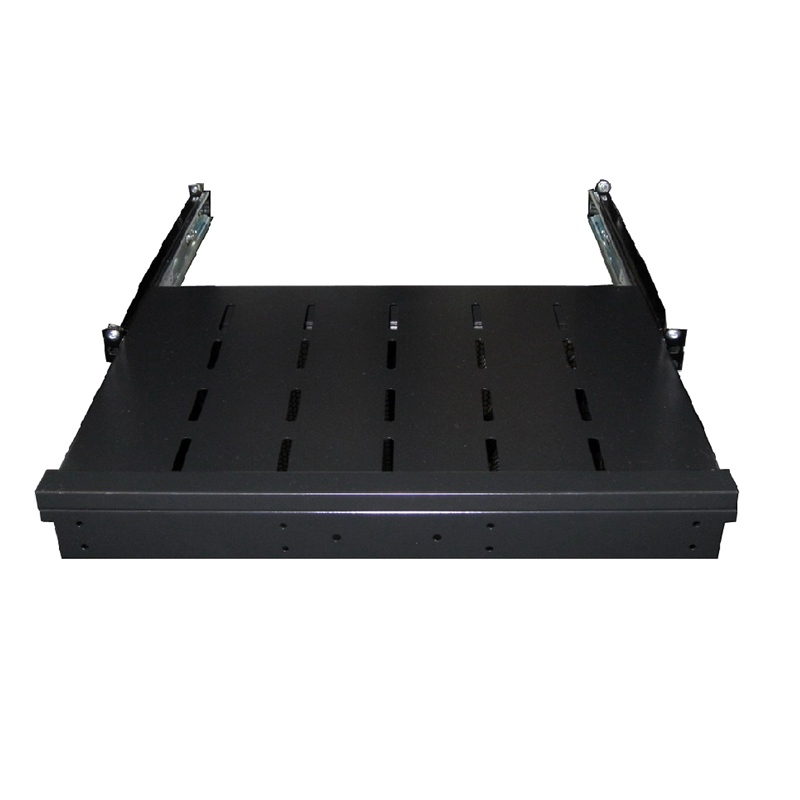

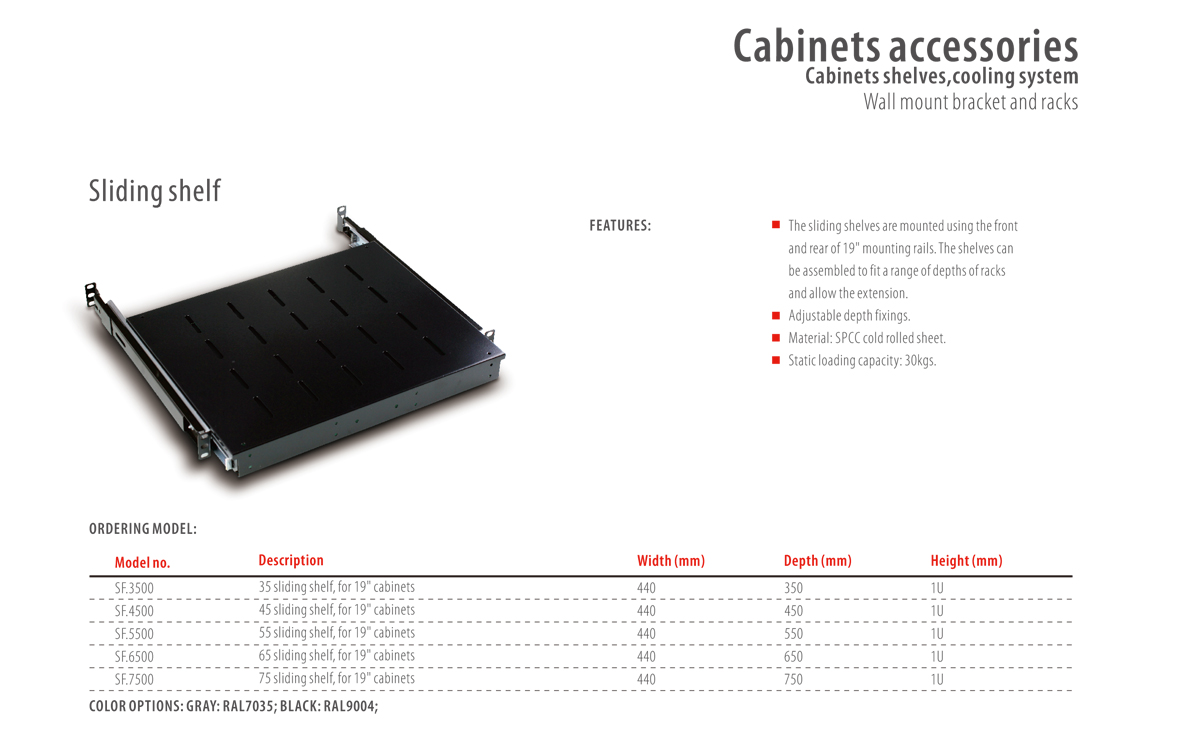

Features:
• The sliding shelves are mounted using the front and rear of 19" mounting rails. The shelves can be assembled to fit a range of depths of racks and allow the extension.
• Adjustable depth fixings.
• Material: SPCC cold rolled sheet
• Width: 440mm
• Thickness: 1.2mm
• Static loading capacity: 30kgs
• Color options: Gray Ral7035; Black Ral9004
Ordering Model:
Model No. | Description | Width/mm | Depth/mm | Height/mm |
SF.3500 | 35 sliding shelf, for 19" cabinets and racks | 440 | 350 | 1U |
SF.4500 | 45 sliding shelf, for 19" cabinets and racks | 440 | 450 | 1U |
SF.5500 | 55 sliding shelf, for 19" cabinets and racks | 440 | 550 | 1U |
SF.6500 | 65 sliding shelf, for 19" cabinets and racks | 440 | 650 | 1U |
SF.7500 | 75 sliding shelf, for 19" cabinets and racks | 440 | 750 | 1U |
