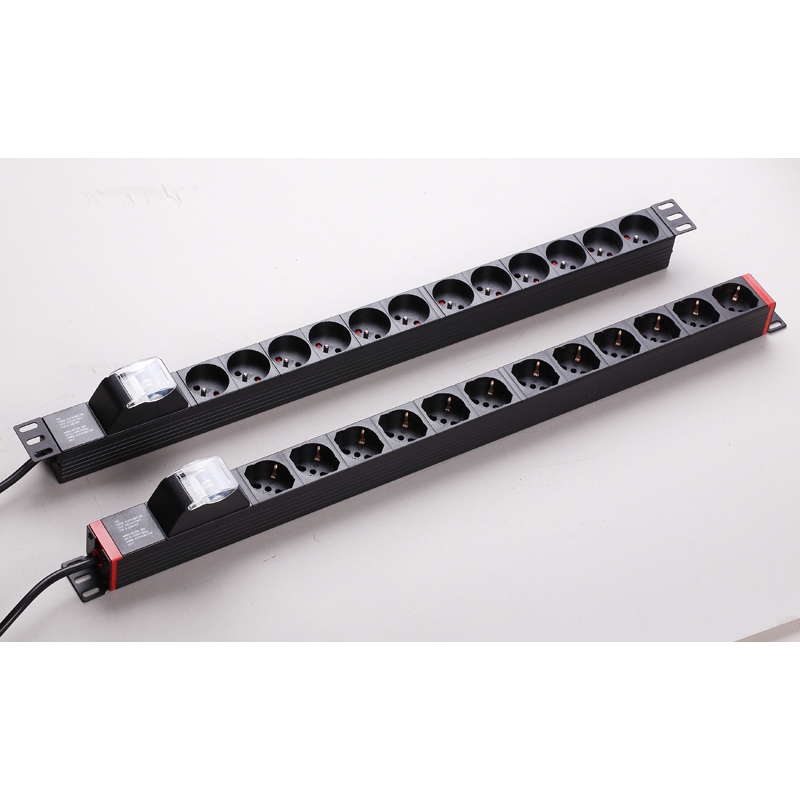

PDU (Power distribution unit)
Horizontal and vertical installation power management
An extensive range of professional power distribution units designed specifically for the 19 inch cabinets markets, supplied with a full range of socket choice to suit wall mounting or floor standing cabinet racks.
We offer both standard PDUs and the intelligent monitoring PDUs.
Features:
• PDU mounting ears are designed to meet the various requirements on both 19” installation and vertical installation inside of universal cabinets.
• Power distribution unit (PDU) are with standard dimensions, 1U and 1.5U are available while the length can be customized. Plastic material and Aluminum alloy material are optional for different market demands.
• Different output unit types of PDU are available in IEC, BS1363, NEMA 5-15R, DIN49440, etc.
• Control function modules are available in master switch, mini circuit breaker, etc.
• Special functions Modules are optional such as surge protector, over-load protector, 3-LED surge protector, Ampere meter, Voltage and Ampere meter, etc.
• Customized Brand service is available
• Various options on power cords entry from side/front, single input/dual input, etc.
Ordering Model:
Model No | Output module | Description | Remark |
PA.1806 | NF C61-314 | 6 way PDU with main switch, 1U height, 2.0 meter power cord, 19” installation | Aluminum |
PA.1808 | NF C61-314 | 8 way PDU with main switch, 1U height, 2.0 meter power cord, 19” installation | Aluminum |
PA.1809 | NF C61-314 | 9 way PDU with main switch, 1U height, 2.0 meter power cord, 19” installation | Aluminum |
PA.1810 | NF C61-314 | 10 way PDU with main switch, 1U height, 2.0 meter power cord, 19” installation | Aluminum |
