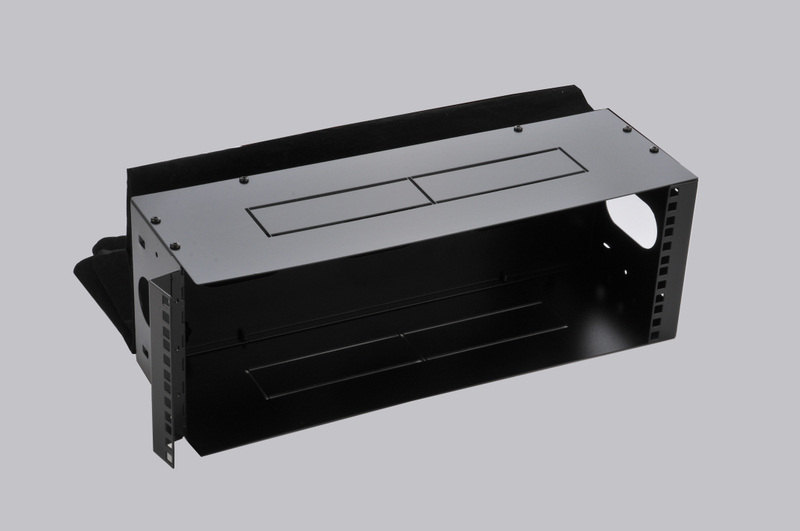

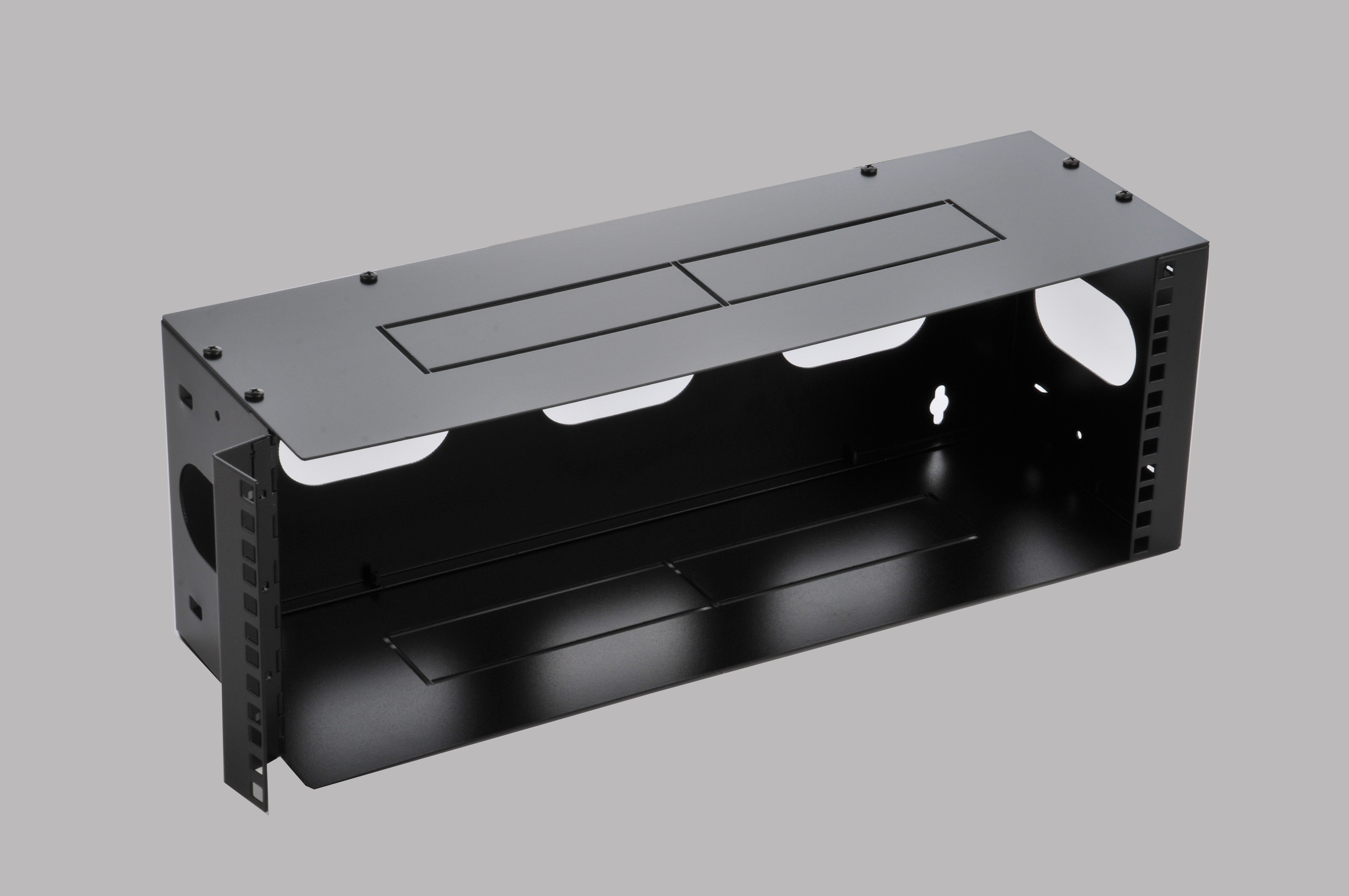

Wall mount bracket
Features:
Designed for 19” patch panels, brackets can be mounted onto wall directly.

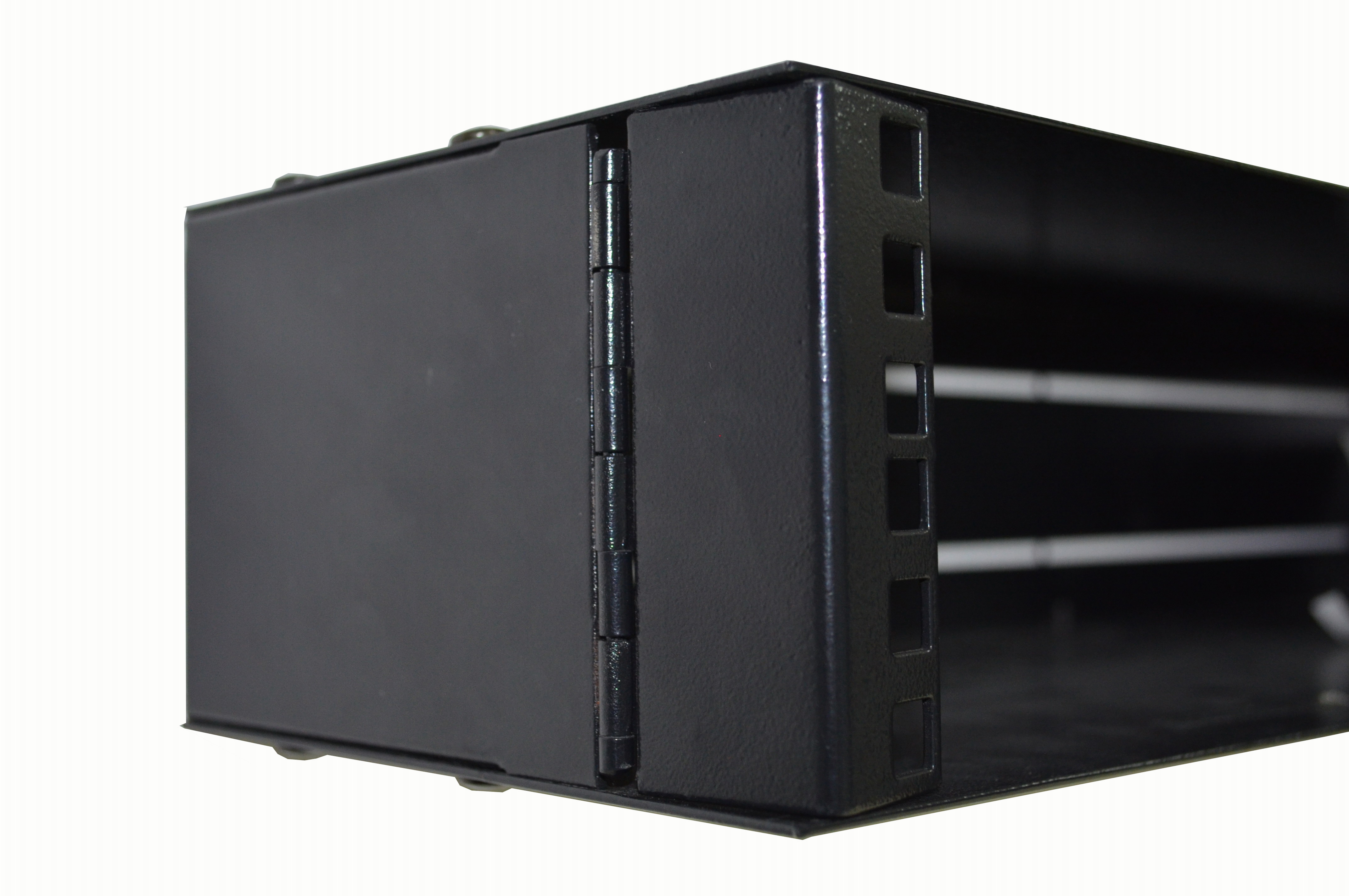

Compact low profile design, hinged frame.
EIA spacing with standard threading.
Optional depth is from 6” to 12”
Optional capacity is from 2U, 3U, 4U to 7U.

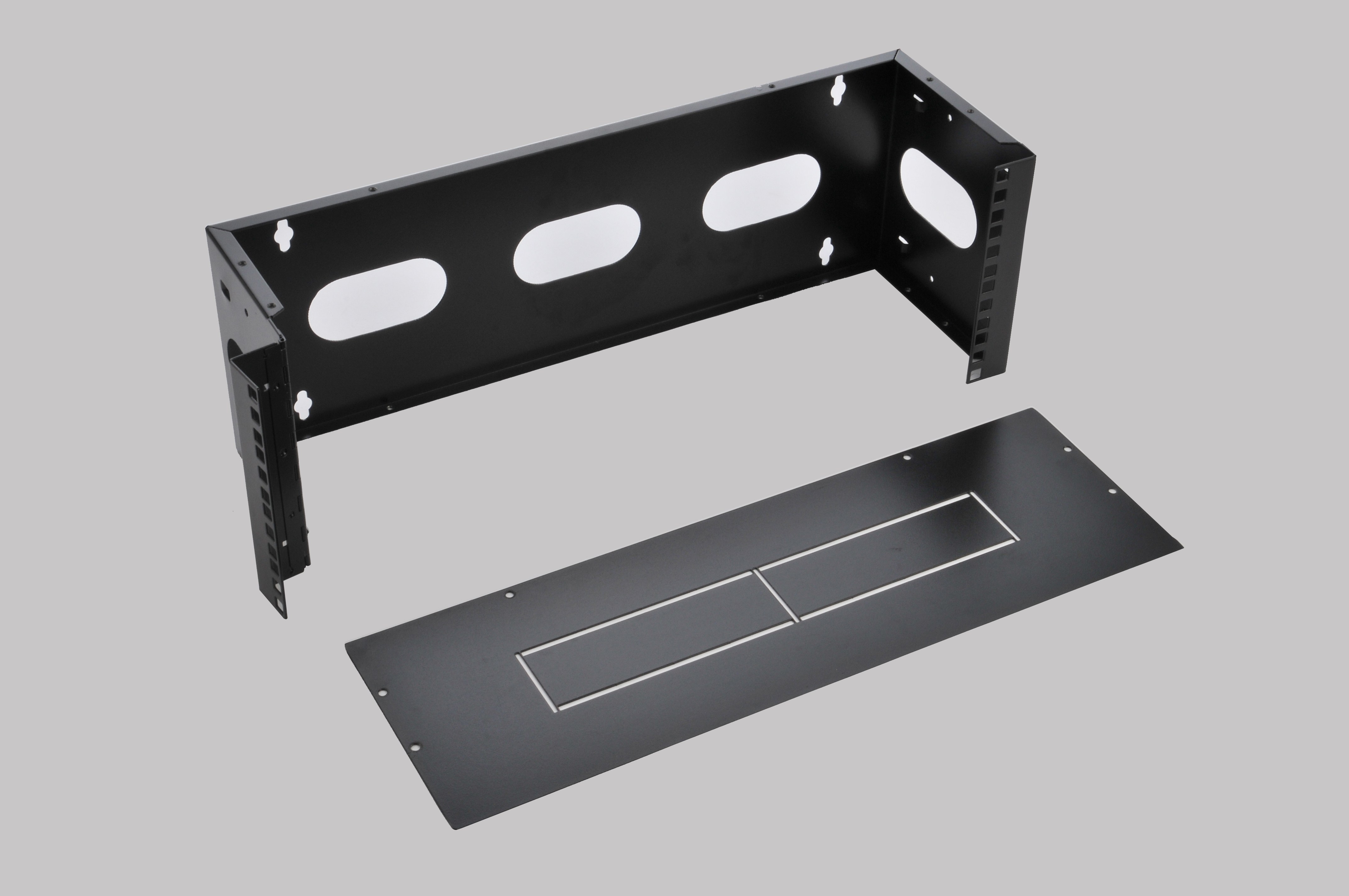

Cover for wall mount brackets optional.
19” installation
Material: SPCC cold rolled steel.
Color: Gray Ral7035, Black Ral9004.
Ordering Model:
Model No. | Capacity | Depth | Remark |
WMB.0206 | 2U | 6" | 19" installation |
WMB.0306 | 3U | 6" | 19" installation |
WMB.0406 | 4U | 6" | 19" installation |
WMB.0412 | 4U | 12" | 19" installation |
WMB.0712 | 7U | 12" | 19" installation |
MB-06C | / | 6" | Cover panel for 6" depth wall mount bracket |
MB-12C | / | 12" | Cover panel for 12" depth wall mount bracket |
